Making list item focused

[MegumiSawada]

Hi


When one of the list item is focused in web page, the item looks something like top image.
I would like to make all the list item looks focused, like bottom image.
Is it possible to do so by setting some property or using theme/styles?

I appreciate your kind advice.

Best Regards,
Megumi Sawada

[jyoung]

You can create a custom DrawStyle in your theme named DrawStyle1 (or whatever).


You can make this drawstyle look like your focused style.

Then attach that drawstyle to all your list items.

Code: Select all

#STD_INT := 1
dountil cond(#STD_INT > 5)
#STD_STRNG := "Hello " + #STD_INT.AsString
add_entry to_list(#List1)
#List1.CurrentItem.ThemeDrawStyle := DrawStyle1
#STD_INT += 1
enduntil

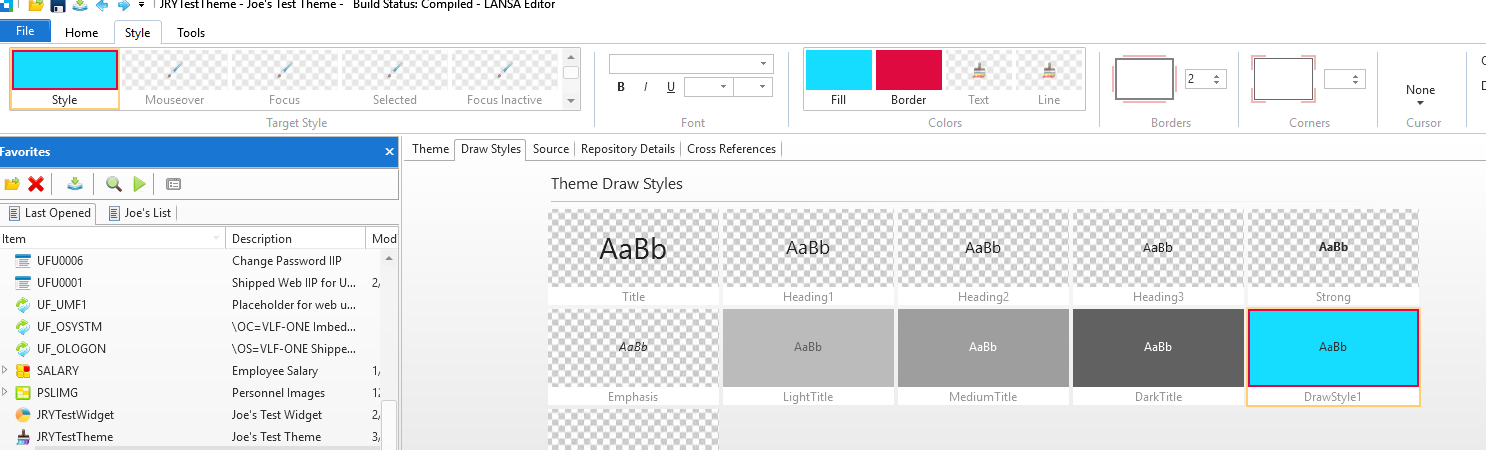

drawstyle list item.png (4.07 KiB) Viewed 8746 times

The list items will not be "focused" but they will look like it.

Hope this helps,
Joe

[MegumiSawada]

Hi Joe,

Thank you for your advice!
There might be some restrictions, but with custom DrawStyle ,it seems I can do similar things to what I wanted to.

Best Regards,
Megumi

[atostaine]

Wouldn't you just mark every item as selected, and then the current draw style is used?

selectList #Grid
#grid.currentItem.selected := true
upd_Entry #grid
endSelect

Grid selection style has to be multiple.

I don't know for sure if upd_entry is required.

Art

[Stewart Marshall]

You could set the items to be selected (UPD_ENTRY is not required), but this would change the moment you click in the list. The clicked item would become the FocusItem and all others would become Selected(False).

Far better then to use a DrawStyle as Joe suggested
