Does Integrator have access to HTTP_RESPONSE_CONTENT.TXT when error 500 from server?

[jabdefiant]

Hi All,

I would appreciate any insight that anyone would have on this.

I have a https json client written in LANSA. It using httpService and consumes a JSON API. Occasionally the API will fail with an error 500. The reason for the error is returned, and Integrator logs it to HTTP_RESPONSE_CONTENT.TXT.
Wondering if my LANSA code has access to the error message which was returned. It's not in the JSMXMSG field.

This is an automated process, and I would like to have my code email the error message to an admin.

Thanks

Andy

[Dino]

Hi Andy

Just yesterday the new technical newsletter was talking about this in the page 4:

https://www.lansa.com/support/newsletter.htm

Out of curiosity, what do you get in JSMXSTS in these cases?

If you receive a HTTP_RESPONSE_CONTENT you should be able to receive and process that using HTTPInboundJSONBindService using the JSON Binding Wizard https://docs.lansa.com/14/en/lansa093/i ... 9_0075.htm

Other related post in the forum: viewtopic.php?t=38

[Dino]

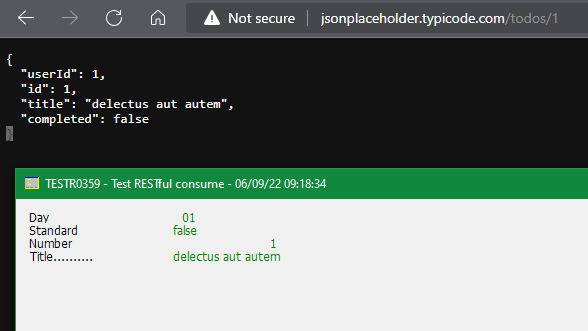

This is an old rdml example I did once for getting results from this page, which basically reads the HTTP_RESPONSE_CONTENT.TXT which in a good case, and I think in a bad case, returns the response as json:

http://jsonplaceholder.typicode.com/todos/1

Code: Select all

Function Options(*DIRECT)
* The following fields should be defined in the dictionary
* DEFINE     FIELD(#JSMSTS) TYPE(*CHAR) LENGTH(20)
* DEFINE     FIELD(#JSMMSG) TYPE(*CHAR) LENGTH(256)
* DEFINE     FIELD(#JSMCMD) TYPE(*CHAR) LENGTH(256)

* The following fields are used by the json binding map
* #STD_DAY
* #STD_BOOL
* #STD_NUM
* #STD_TITLE

* Open service
Use Builtin(JSM_OPEN) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* Load service
Change Field(#JSMCMD) To('SERVICE_LOAD SERVICE(HTTPSERVICE) TRACE(*YES)')
Use Builtin(JSM_COMMAND) With_Args(#JSMCMD) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* Access the URL https://jsonplaceholder.typicode.com/todos/1'
Change Field(#JSMCMD) To('SEND HOST(jsonplaceholder.typicode.com) CONTENT(*JSON) URI(/todos/1) HANDLER(OutboundFile) METHOD(GET) WAIT(*YES)')
Use Builtin(JSM_COMMAND) With_Args(#JSMCMD) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* * Receive the response in HTTP_RESPONSE_CONTENT.TXT as c:\temp\receivedjson.json
Change Field(#JSMCMD) To('RECEIVE HANDLER(IFILE) CONTENT(*JSON) TO(c:\temp\receivedjson.json)')
Use Builtin(JSM_COMMAND) With_Args(#JSMCMD) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* Unload service
Use Builtin(JSM_COMMAND) With_Args('SERVICE_UNLOAD') To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* Load service
Change Field(#JSMCMD) To('SERVICE_LOAD SERVICE(JSONBindFileService) TRACE(*YES)')
Use Builtin(JSM_COMMAND) With_Args(#JSMCMD) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* * Reads the received information in the previous step
Change Field(#JSMCMD) To('READ FILE(c:\temp\receivedjson.json)')
Use Builtin(JSM_COMMAND) With_Args(#JSMCMD) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* Bind service to read HTTP request content
Change Field(#JSMCMD) To('BIND SERVICE(REST005BW) TYPE(*INBOUND) BINDTRACE(*YES) SERVICE_EXCHANGE(*FIELD) CONTENT(*JSON)')
Use Builtin(JSM_COMMAND) With_Args(#JSMCMD) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* Unload service
Use Builtin(JSM_COMMAND) With_Args('SERVICE_UNLOAD') To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

* Close service
Use Builtin(JSM_CLOSE) To_Get(#JSMSTS #JSMMSG)
Execute Subroutine(CHECK) With_Parms(#JSMSTS #JSMMSG)

Display Fields(#STD_DAY #STD_BOOL #STD_NUM #STD_TITLE)

* Check routine
Subroutine Name(CHECK) Parms((#JSMSTS *RECEIVED) (#JSMMSG *RECEIVED))
If Cond('#JSMSTS *NE OK')
Use Builtin(JSM_CLOSE) To_Get(#JSMSTS #JSMMSG)
* Exit
Endif
Endroutine


[jabdefiant]

Hi Dino,

Thanks for putting together the newsletter, and for your attention to this.

I am using the httpService with the JSON handler....I think I originally coded with this because of a need to work with the headers which was not in the JSONBindServices (I think that was the limitation).

I just checked and this is what I get back.
JSMXSTS: ERROR
JSMXMSG: HTTP response has failed

I'll check out the links, and play around with your code sample, and let you know how I make out.

Regards,
Andy

[Dino]

"putting together the newsletter" <---- that would be Rene

[caseywhite]

Here is what I use. I think this works for any Integrator HTTP service, not just JSONBinding. That being said, I am using it with JSONBinding.

#SA_JSMCMD := 'GET PROPERTY(STATUS)'
Use Builtin(JSMX_COMMAND) With_Args(#JSMHND #JSMCMD) To_Get(#JSMSTS #JSMMSG)

#SA_JSMCMD := 'GET PROPERTY(STATUS-MESSAGE)'
Use Builtin(JSMX_COMMAND) With_Args(#JSMHND #JSMCMD) To_Get(#JSMSTS #JSMMSG)

[jabdefiant]

Dino,

I was able to get it running thanks to your input.
While reviewing your sample code, It occurred to me that after getting the error, that I could still do the RETRIEVE command to get the actual returned document.

Casey: It's been a long time. Hope all is well. For me "STATUS" and "STATUS-MESSAGE" both just returned 500.

This is my final solution
=====================
#JSMXCMD := 'SEND HOST(testhost) URI(/services/Products) HANDLER(OutboundJSONBind) SECURE(*YES) METHOD(POST)'
Use Builtin(JSMX_COMMAND) With_Args(#JSMXHDL #JSMXCMD) To_Get(#JSMXSTS #JSMXMSG)

If Cond(#JSMXMSG *EQ 'HTTP response has failed')

Change Field(#JSMXCMD) To('RECEIVE HANDLER(IFILE) CONTENT(*JSON) TO(/tmp/ProdFeedResonse.json)')
Use Builtin(JSMX_COMMAND) With_Args(#JSMXHDL #JSMXCMD) To_Get(#JSMXSTS #JSMXMSG)

#COM_SELF.uEmailAlertForFailure( #PRCF04 True ) // SEND EMAIL WITH ATTACHMENT
#JSMXSTS := ERROR // FORCE A CLEAN SHUTDOWN

Endif

If Cond(*Not #COM_SELF.uCheck)
Return
Endif
