VLF-ONE Material Button Color

[jyoung]

Is there any way to customize the primary button color in VLF-ONE when using Material Buttons?

We have a theme customizer in place to only allow the Material Blue theme, but we would like to tweak the button color a bit to match our corporate color scheme.

[MarkD]

If you are using the new MD style buttons in a VLF-ONE application then I guess that this is really a generic VL-Web question about how to tweak MD push button colors?

[jyoung]

I don't think so, but I could be missing something.

With VLWeb I can create a new theme and change the color palette to match corporate colors.
For example change the 500 Primary Medium color to change the Primary Button color.

With VLF-ONE, the theme gets customized with VF_SY170O by extending #VF_AC033O and there is no way to adjust the Primary Button Color.

It just occurred to me (literally as I type this out) I may be able to attach a standard theme to VLF-ONE in the same way that I do with a normal VLWeb app. It was my understanding that you HAD to use VF_SY170O to customize the themes. Perhaps this is different in SP2?

EDIT
I tried adding a theme to the page but the buttons stay the same color. I think this is because of the theme that VLF-ONE uses captioned "Change the current theme".

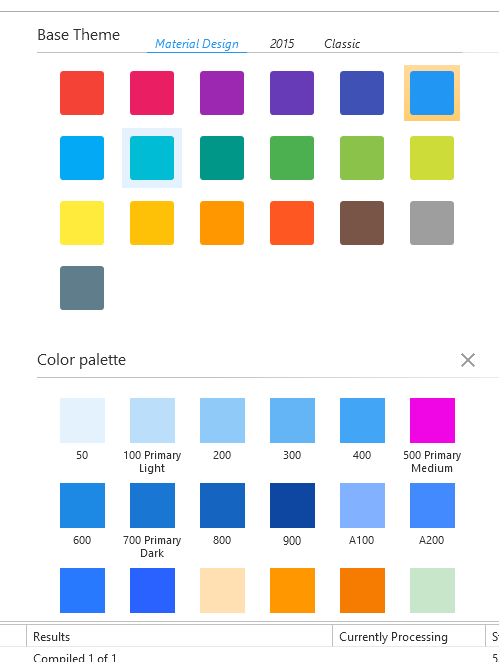

I created a theme and changed the 500 Primary Medium color and added a "RaisedButton" Drawstyle.


The designer shows the right colors

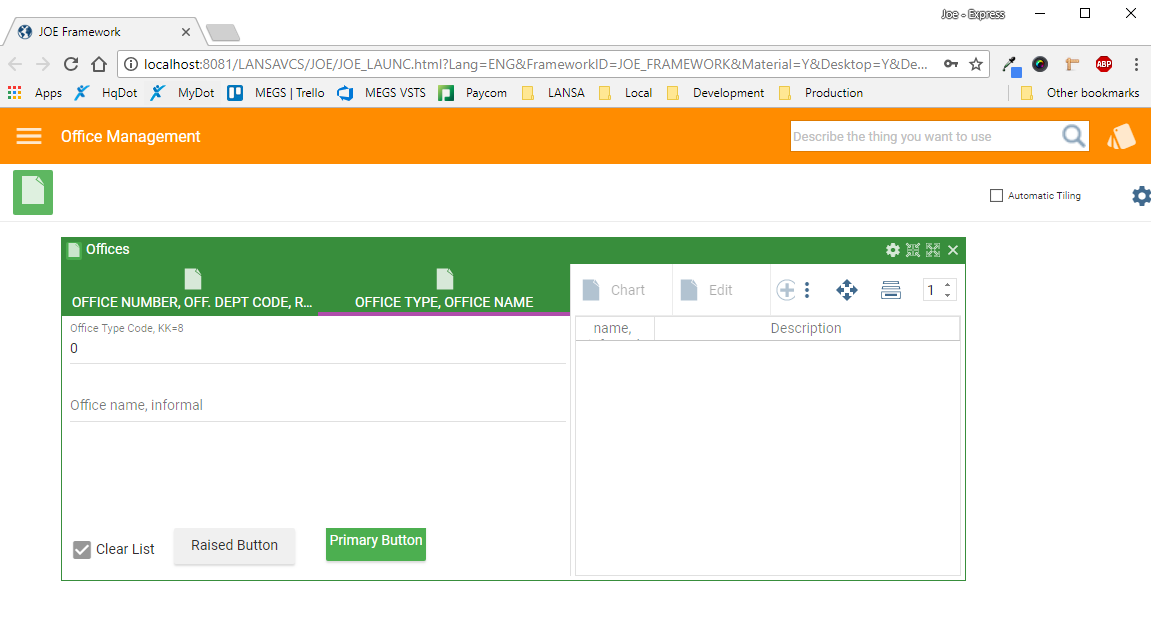

The filter, has the "green" theme selected from the theme icon in the upper right and does not use the custom theme colors.


The PRIM_WEB includes the theme.

Code: Select all

* -------------------------------------------------------------------------------------------------------------
* This is the customized VLF-ONE entry point (or launch point) form for framework JOE Framework
* Created 16th May 2018 by USERID with Material Design style controls.
* On the Resources tab (above) the script named VLFONE_Engine.js should be specified to maximize performance.
* -------------------------------------------------------------------------------------------------------------

begin_com role(*EXTENDS #PRIM_WEB) LayoutManager(#WebFormLayoutManager) Theme(#JOE_Theme)

define_com class(#PRIM_ATLM) name(#WebFormLayoutManager)
define_com class(#PRIM_ATLI) name(#VLF_One_AttachItem) Parent(#WebFormLayoutManager) Attachment(Center) Manage(#VLF_ONE)
define_com class(#VF_AC006O) name(#VLF_ONE) Parent(#COM_OWNER) Height(800) Width(1200)

* -------------------------------------------------------------------------------------
evtroutine handling(#COM_OWNER.CreateInstance)

* For more details of the all options available here see - http://%lansadocs%/lansa048/index.htm#lansa/lansa048_8285.htm
* To see the link, press the Ctrl key, then mouse over the URL and click to open the information in a browser.


* Start VLF-ONE for your framework
#VLF_ONE.uInitialize FrameworkIdentifer("JOE_FRAMEWORK") LogonExpiry(90) LogOnHeaderPanelId("JOE_LOGO") LogOnTrailerPanelId("JOE_LO_1") LogOnHandlerId("VF_AC026O") PasswordChangerId("") MtxtLoaderId("UF_OMULTI") ThemeCustomizerId("")

endroutine

* -------------------------------------------------------------------------------------
evtroutine handling(#SYS_WEB.CloseQuery)

if (#VLF_ONE *IsNot *null)
#VLF_ONE.uTerminate PossibletoCancel(False) BrowserisClosing(True)
endif

endroutine

end_com

So in VLWeb I can adjust the colors, but in VLF-ONE it "looks like" I HAVE to still use VF_SY170O. The only option I see to adjust Material Buttons is the MaterialButton_FontSize property.

[MarkD]

Could you post your VF_SY170O object code and/or the code to you to set it up at start up?

[MarkD]

VLF-ONE’s theme object has a huge amount of properties relate to the sizes, shapes, gaps, etc involved in menus, pop ups, sliders, etc, etc.

Probably most significantly, is has a VL-Web theme associated with it via property Vlwebapplicationtheme.

At start up a VLF-ONE application sets the VL-Web overall theme like this:

#SYS_WEB.WebPage.Theme <= #Sys_Theme<#USystem.CurrentTheme.VLWebApplicationTheme>

which is more or less the what any VL-Web application that allowed theme selection would do.

So, if you had a VF_SY170O object that had property ForMaterialDesign=True, you would also need to make sure that its Vlwebapplicationtheme property named a Material Design style.

For example, the shipped Windows desktop mode blue VF_SY170O object is set up like this:


The matching material design one is set up like this:


This also means that if customize or lock down VLF-ONE themes, and allow users to choose to use Material Design and Windows desktop style applications – then you’d need to set up at least two VF_SY170O objects.

[MarkD]

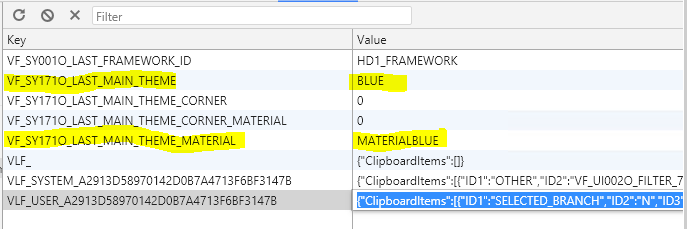

I guess the one other area to check if you are changing things in this area is the virtual clipboard data in your browser's local storage.

This is a well formed data set example that shows a framework that has been run in Windows Desktop and Material Design mode.


[jyoung]

Hey Mark, I apologize, but I am all kinds of confused now.

In the examples I posted, I was not using VF_SY170O, I was just using a theme and experimenting with different things to see what would work.

Perhaps its best if I start over.

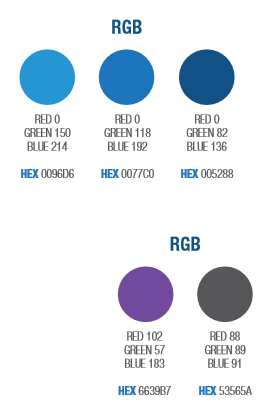

There has been a push internally to use our brand guide for apps and that guide includes the corporate color palette. We have three primary colors (all shades of blue) and two secondary colors.


In our PRODUCTION app, we use a theme customizer to fix lock the theme to Material Blue and tweak some of the colors.

Code: Select all

begin_com role(*EXTENDS #VF_AC033O)

mthroutine name(Customize) options(*REDEFINE)

define_com class(#PRIM_ALPH) name(#lBlue)
* TODO: Change to "0:82:136"
#lBlue := "0:114:198"

for each(#theme) in(#Themes)
continue if(#theme.ForMaterialDesign = False)

if (#theme.SymbolicName = "MATERIALBLUE")
* customize the blue theme
#theme.BaseTitleStyle.NormBackColor := #lBlue
#theme.FloatingPanel_AtFrontTitleStyle.NormBackColor := #lBlue
#theme.FloatingPanel_AtFrontBorderBrush.Color := #lBlue
else
* disable all other themes
#theme.Enabled := False
endif
endfor

endroutine
end_com

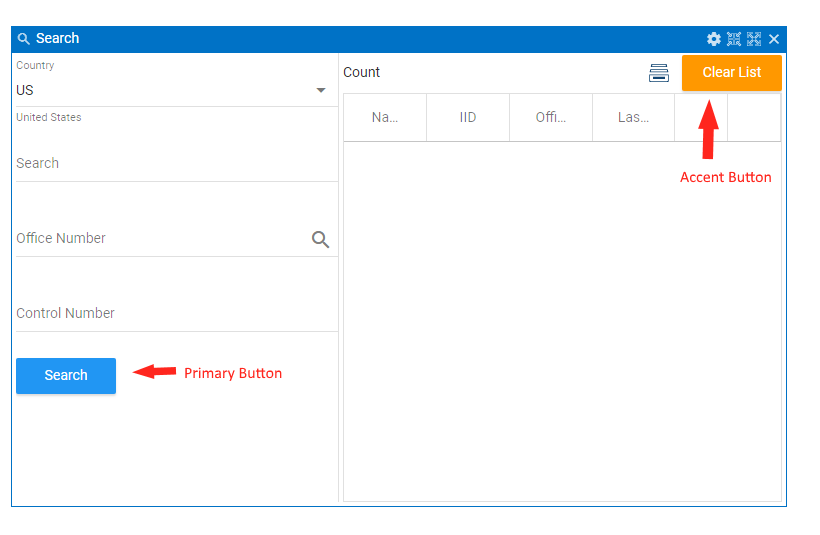

What I am trying to do it make these buttons match our colors.


Is there any way to do this using the Themes?

Thanks for the help.
Joe

EDIT
I should mention its not just buttons. It looks like most (if not all now) of the components pick up on the MD theme. I just need to be able to tweak the theme within VLF-ONE to match our brand guides.

[MarkD]

Hi Joe – I think I get it now.

VLF-ONE applications can only use shipped VL-Web themes.

i.e. You can’t currently use a custom theme.

We are about to produce the first hotfix for the EPC142005 VLF version, and I think we could include the change required to allow you to use a custom theme. So you could probably have that new feature in a few weeks.

[MarkD]

If you wanted to confirm that new feature would work for you, I think you could try putting this line

#SYS_WEB.WebPage.Theme <= #MyCustomTheme

into your framework’s IIP (your version of DF_OSYSTM) in the uInitialize method.

That would not affect buttons at logon - but it should affect all those created after that.

[jyoung]

That is exactly what I was looking for!

Setting the theme in IIP works. It would be nice if it worked on the logon buttons, but I will take it.

Thanks!
Joe

[MarkD]

Once you have the hotfix you can change your code to

if (#theme.SymbolicName = "MATERIALBLUE")
* customize the blue theme
#theme.UseCustomApplicationTheme <= #MyCustomTheme

instead, and that will impact the logon buttons.

[MarkD]

The hotfix containing this change is now available.
