This Q&A forum allows users to post and respond to "How Do I Do ....." questions. Please do not use to report (suspected) errors - you must use your regional help desk for this. The information contained in this forum has not been validated by LANSA and, as such, LANSA cannot guarantee the accuracy of the information.
René Houba
Posts: 220 Joined: Thu Nov 26, 2015 7:03 am
Post
by René Houba Fri Oct 14, 2022 5:40 am
For a customer I need to build a SOAP solution using LANSA Integrator. The problem I describe here can be simply reproduced.
I need to download the latest CybersourceTransaction documents:
https://ics2wsa.ic3.com/commerce/1.x/tr ... Processor/

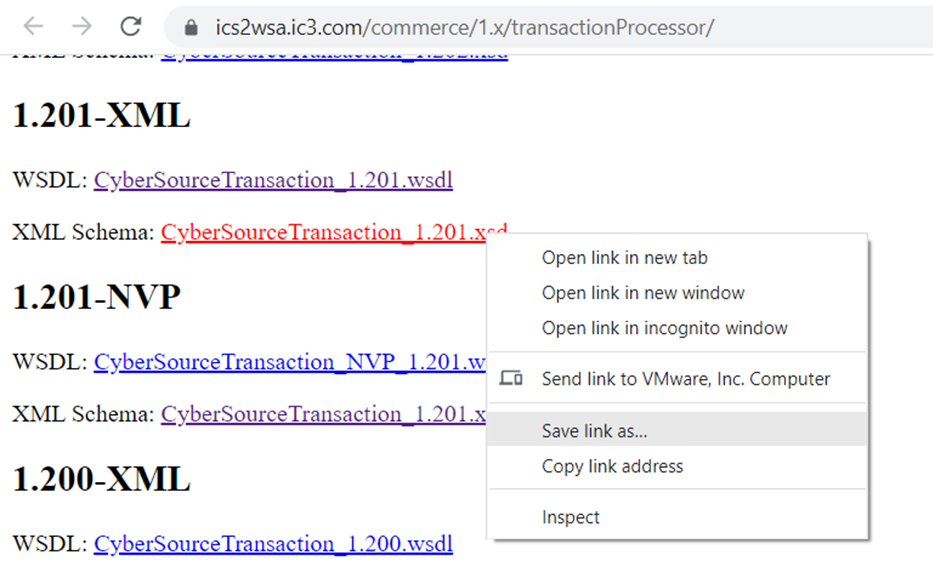

I need to download the 1.201-XML WSDL and XSD. So I used the right mouse button on both hyperlinks and selected Save link as:
I have the documents in my downloads now:

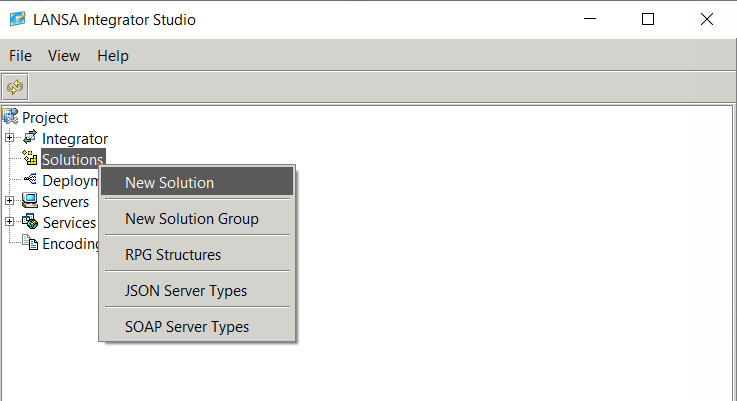

In Integrator Studio, I create a new solution:
Because there is a max of 3 pictures, see next for the rest of this problem....
Last edited by
René Houba on Thu Oct 20, 2022 7:52 pm, edited 1 time in total.
René Houba
Posts: 220 Joined: Thu Nov 26, 2015 7:03 am
Post
by René Houba Fri Oct 14, 2022 5:44 am
I select the SOAP Agent Wizard:
Create solution group: YES

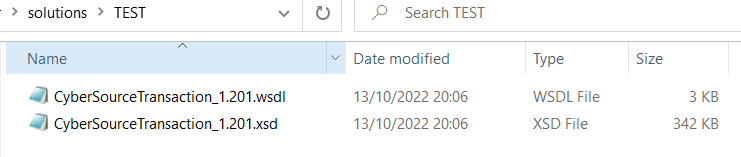

I now first copied the two downloaded file into this TEST subdirectory:
C:\Program Files (x86)\LANSA\Integrator\Studio\workspace\Rene\solutions\TEST
Because there is a max of 3 pictures, see next for the rest of this problem....
René Houba
Posts: 220 Joined: Thu Nov 26, 2015 7:03 am
Post
by René Houba Fri Oct 14, 2022 5:48 am

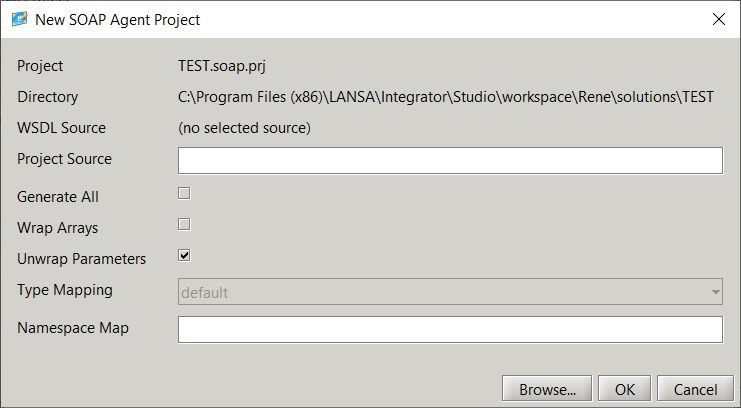

In Studio, I select in this window the Browse button:
And Browse button again:

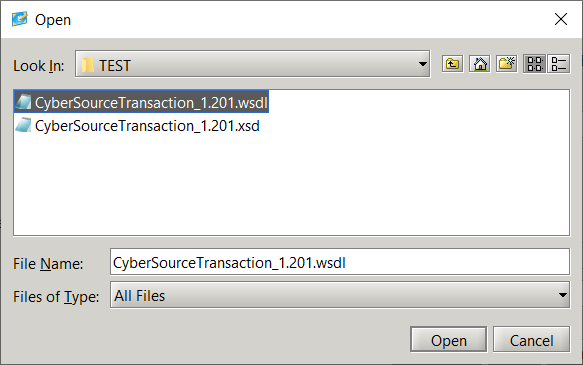

And select the wsdl file and button Open:
Because there is a max of 3 pictures, see next for the rest of this problem....
René Houba
Posts: 220 Joined: Thu Nov 26, 2015 7:03 am
Post
by René Houba Fri Oct 14, 2022 5:51 am
I select OK:

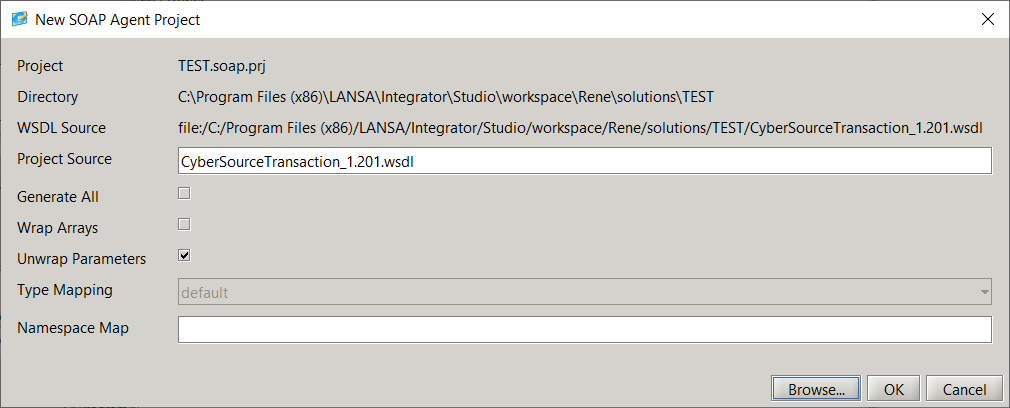

Back in this Window I select the OK button:

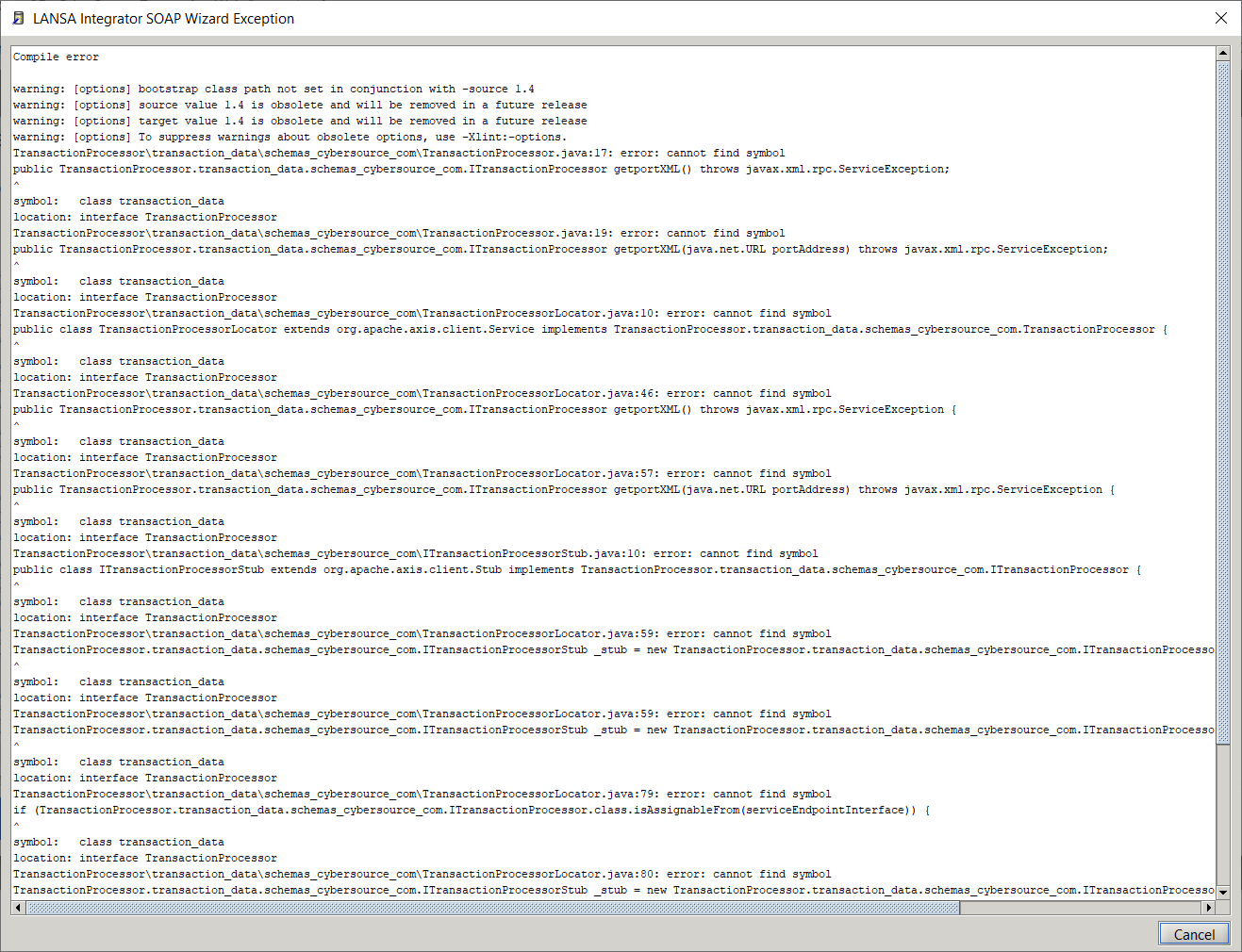

Integrator Studio will generate this solution but finally will fail with errors:
Most error messages: "error: cannot find symbol"
Does anyone know what the problem is here?
René Houba
Posts: 220 Joined: Thu Nov 26, 2015 7:03 am
Post
by René Houba Thu Oct 20, 2022 7:50 pm

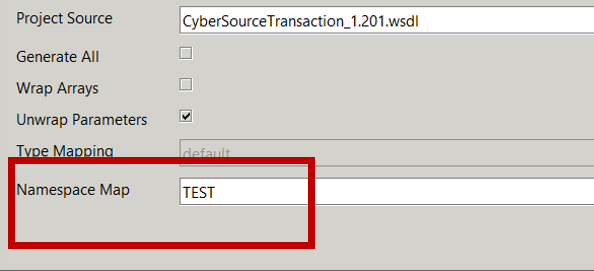

This Java compile error could be solved finally by filling in a name in the "Namespace Map" option:
